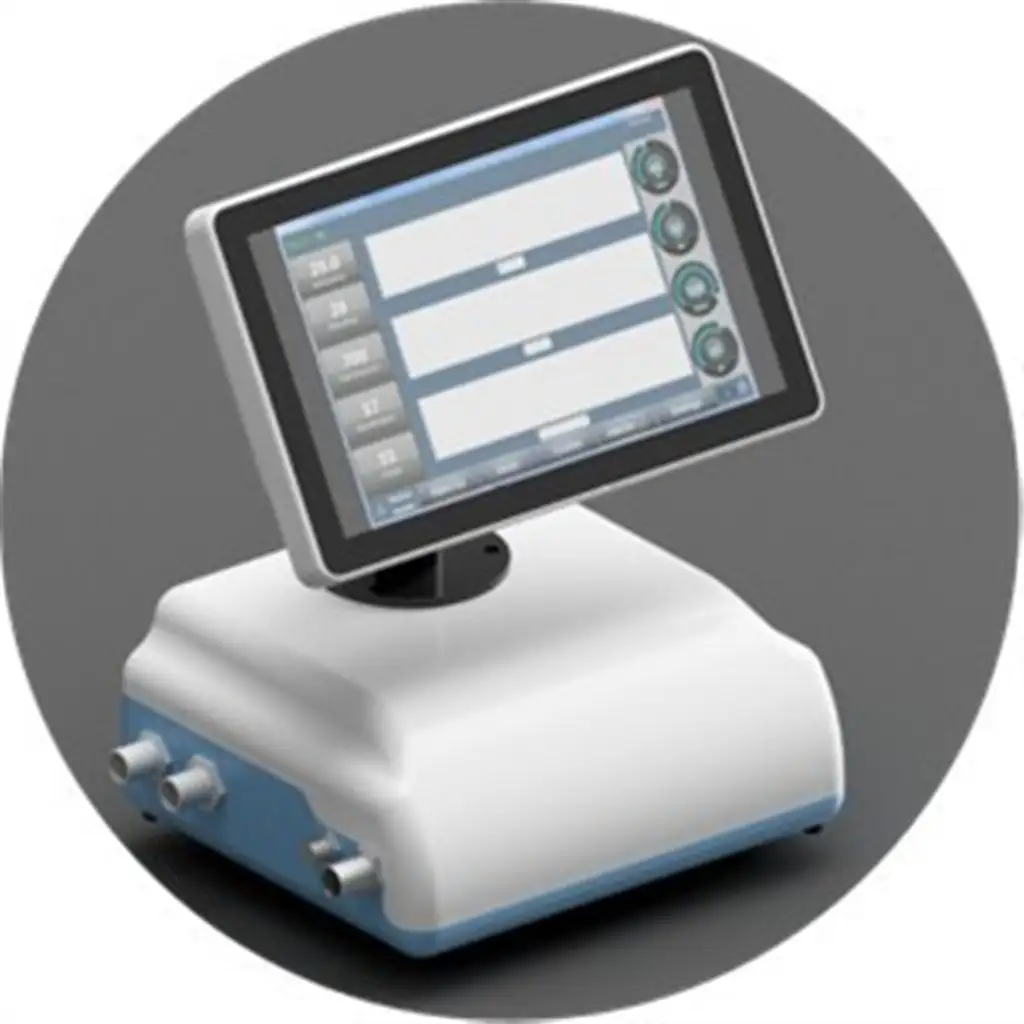

VSSC/ISRO has developed an ICU grade positive pressure mechanical ventilator titled 'VaU' ((वायु)), (abbreviation of Ventilation assist Unit), which can assist or replace the spontaneous breathing in patients under respiratory distress.
VaU is based on a centrifugal blower which draws in filtered ambient air, compresses it and delivers it to the patient to achieve ventilation and can therefore operate without a compressed pneumatic source. Provision is also given in the ventilator to connect a high pressure oxygen source, from which oxygen is metered automatically, to achieve the desired oxygen concentration (FiO2) in the inspiratory flow. Microcontroller based control module in the ventilator acquires signals from an array of sensors and commands the electro-pneumatic components to effect closed loop control.
More Details
VaU also comes with an intuitive Human Machine Interface (HMI) System running on a medical grade touch screen PC, which allows the operator to set and monitor various ventilation parameters in real time. A power supply unit, which can operate with 230VAC or an internal battery pack, is used to power the electro-pneumatic components, controller, and the HMI system of the ventilator. VaU has been configured to operate in a variety of patient/ventilator triggered invasive and non-invasive ventilation modes and has provisions to detect fault conditions and raise alarms through the HMI system to alert the operator.
SPECIFICATIONS
S.No.
Parameter
Specification
1.
Description
Centrifugal Blower based Positive Pressure Mechanical Ventilator suitable for ICU applications.
2.
Operation Modes
VC,VC-AC, VC-SIMV, PC,PC-AC,, PC-SIMV, PSV, PRVC, CPAP, BiPAP
3.
Inspiration flow rate
Upto 200 LPM
4.
Tidal Volume
0 to 2000 ml
5.
FiO 2 Control
21 to 100 % (from regulated O 2 source of pressure 2 bar)
6.
Inspiratory Pressure
0 to 60 cm H 2 O (Relief setting at 80 mbar)
7.
PEEP Pressure
5-30 cm H 2 O
8.
Respiratory Rate
0 to 60 (with settable I:E ratio)
9.
Net Weight
20 Kg
10.
Mech. Interfaces
11.
Additional Capabilities
12.
Dimensions in mm
350*250*200 (without display) 350*250*450 (with display)
The proto type developed at VSSC/ISRO has undergone in-house test & evaluation and meets the specifications given above. The responsibility of obtaining mandatory certification from approving agencies of government of India before clinical usage vests with the industry.
ISRO intends to transfer the technology of VaU (वायु) Ventilator to PSUs/Industries/Start-ups having good track record in manufacture of critical medical/electronic equipment manufacturing.
Interested industries / entrepreneurs are requested to submit their expression of interest along with details as per attached annexure in the email address provided below for the purpose of evaluation. Shortlisted industries will be contacted over the email address provided, along with the details.
Last date for application : 5 pm on June 25, 2021
The EoI applications and all communications are to be send to vauventilator[at]gmail[dot]com
Download Response form for ToT of “VaU” Ventilator PDF - 104 KB
