Technology Transfer of Novel Non-invasive Ventilator-'SVASTA' (Interest Exploration Note) Home / Programmes/Technology Transfer /Technology Transfer / Novel Non-invasive Ventilator-'SVASTA'

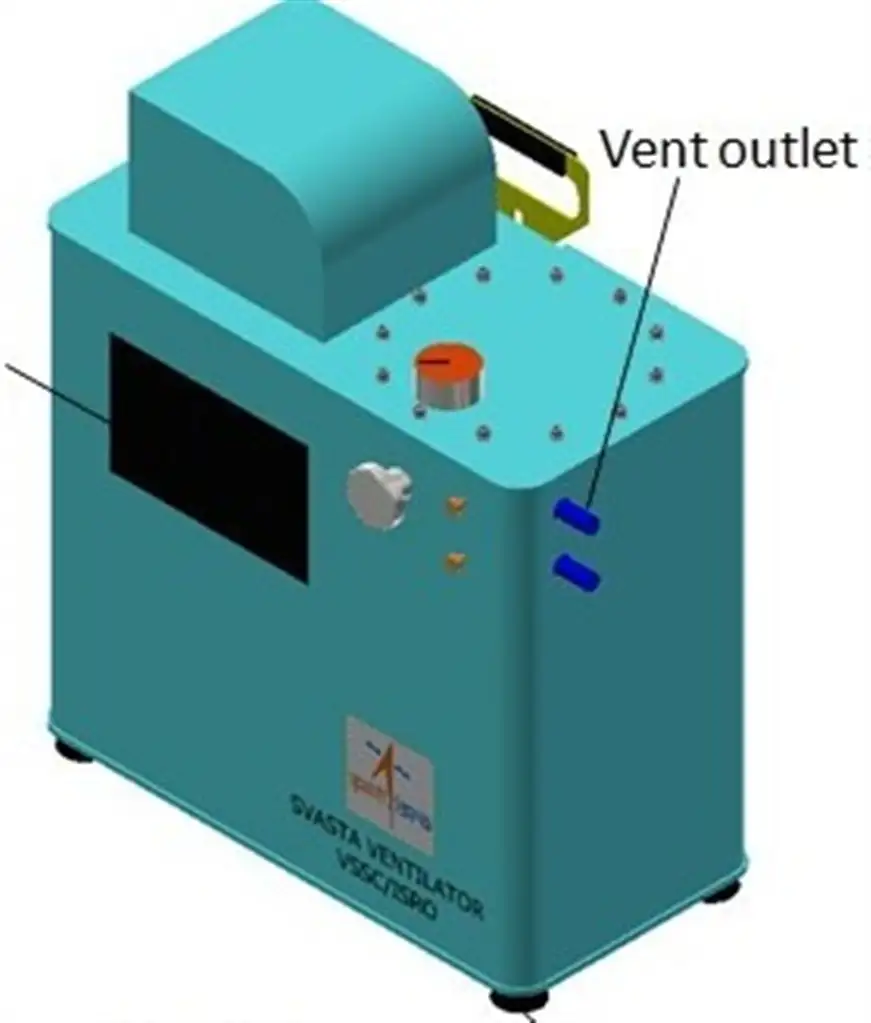

VSSC/ISRO has developed a gas-powered ventilator – 'Space Ventilator Aided System for Trauma Assistance (SVASTA)' - for basic mode for non-invasive ventilation. This ventilator is well suited for emergency use for first line treatment and as transit ventilators inside vehicles. The basic design is simple, and the components can be easily mass produced for emergency use in pandemic like situations.

The innovative ventilator runs on compressed air. It is able to perform various ventilation conditions using manual mechanical settings. The system is capable of pressure control ventilation (PCV) in its basic mode of operation with provision for setting different tidal volumes. The basic ventilator design can be re-engineered appropriately by the manufacturer to cater to various modes of ventilation with control systems, electronics, and associated software.

More Details

The proto type developed at VSSC/ISRO has undergone in-house test & evaluation and meets the specifications given above. The responsibility of obtaining mandatory certification from approving agencies of government of India before clinical usage vests with the industry.

ISRO intends to transfer the technology of SVASTA Ventilator to PSUs/Industries/Start-ups having good track record in manufacture of critical medical/electronic equipment manufacturing.

Novel Non-invasive
                                            Ventilator-'SVASTA'

SPECIFICATIONS

Sl.

Parameter

Remarks

1

Driving source

Pneumatic air @ 1.5 bar max

2

Modes of operation in manual mode

PCV

3

Tidal Volume (manual setting)

250-1000 cc

4

IE ratio (manual setting)

1:1 to 1:3

5

Breathing rates (manual setting)

10-30 per minute

6

Respiratory pressure

Up to 40 mbar

7

Display

7 inch display panel

8

Weight, kg

20

9

Size, mm

400x375x200

(compressor attachment not

included)

10

Input power options

Option 1: 230V, 50Hz AC

Option 2: 12 V DC

11

Pneumatic air source

Option 1: AC compressor

Option 2: DC compressor

Interested industries / entrepreneurs are requested to submit their expression of interest along with details as per attached annexure in the email address provided below for the purpose of evaluation. Shortlisted industries will be contacted over the email address provided, along with details.

Last date for application : 5 pm on June 25, 2021

The EoI applications and all communications are to be send to svastaventilator[at]gmail[dot]com

Download Response form for ToT of “SVASTA” Ventilator​ pdf icon PDF - 124 KB ​
