ISRO Completes Major Development Test of its Gaganyaan Parachute SystemHome/Gaganyaan_Parachute_System
Nov 18, 2022
Integrated Main Parachute Airdrop Test (IMAT)
On Friday, Vikram Sarabhai Space Centre, where many Gaganyaan activities are progressing, conducted a major development test “Integrated Main Parachute Airdrop Test, or IMAT “ of its crew module deceleration system at the Babina Field Fire Range (BFFR) in the Jhansi district of Uttar Pradesh. This test marks a significant milestone toward realizing the nation's ambitious Gaganyaan project.
Parachute based Deceleration system for Crew module
For Gaganyaan Crew module, the Parachute system consists of a totally of 10 no. of parachutes. In flight, the parachute sequence starts with deployment of 2 Nos. of Apex cover separation parachutes (protection cover for the Crew Module Parachute compartment) followed by 2 Nos. of Drogue parachute deployment to stabilise & bring down the velocity. Upon Drogue parachute release, 3 Nos. of Pilot chute will be used to extract 3 Nos. of Main parachute individually, to reduce the speed of the Crew module to safe levels during its landing. Two of the three main chutes are sufficient to land the astronauts on earth, and the third is redundant. Each parachute's performance must be evaluated by complex testing methods using Rail Track Rocket Sled (RTRS) tests for smaller Parachutes and Aircraft/ Helicopters for the Main parachutes.

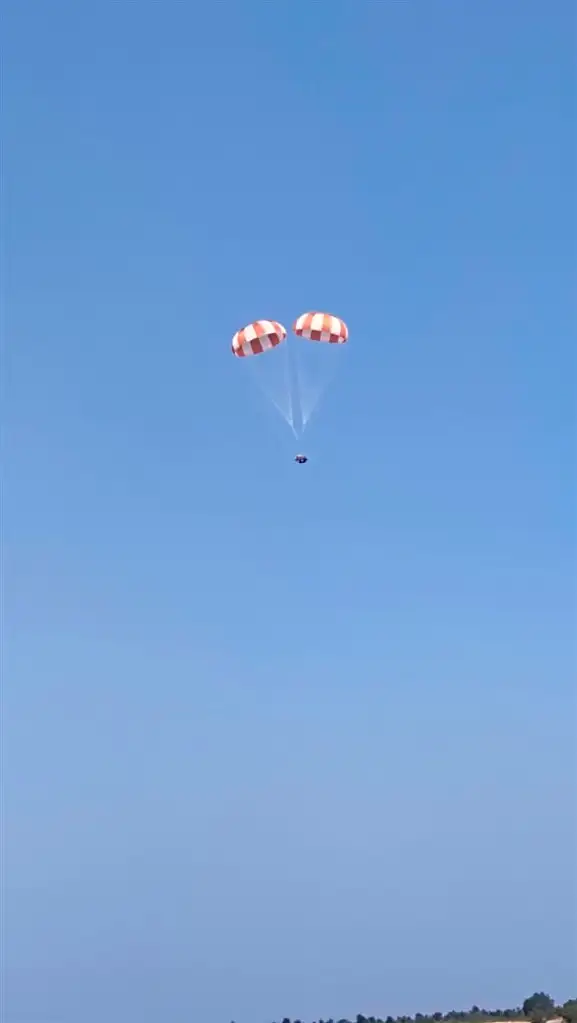

The Integrated Main Parachute Airdrop Test simulated the case when one Main parachute failed to open and it is the first in a series of tests planned to simulate different failure conditions of the parachute system before it is deemed qualified to be used in the first human spaceflight mission. In this test, a 5-ton dummy mass, equivalent to the Crew module mass, was taken to an altitude of 2.5 kilometres and dropped using the Indian Air force’s IL-76 aircraft. Two small pyro-based mortar-deployed pilot parachutes, then pulled the Main parachutes. The fully inflated Main parachutes reduced the payload speed to a safe landing speed as the entire sequence lasted about 2-3 minutes and the payload mass landed softly on the ground.
The design and development of the Parachute based Deceleration system for Crew module is a joint venture between Indian Space Research Organisation (ISRO) and the Defence Research and Development Organization (DRDO) and with this test, a significant milestone toward realizing the nation's ambitious Gaganyaan project is achieved with the active coordination between the country’s premier agencies, namely ISRO, DRDO, the Indian air force, and the Indian Army.
Video of Integrated Main Parachute Airdrop Test (IMAT)
Description:Video of Integrated Main Parachute Airdrop Test (IMAT)
Format : webm
File Size : 58 MB
Duration : 00:02:31
